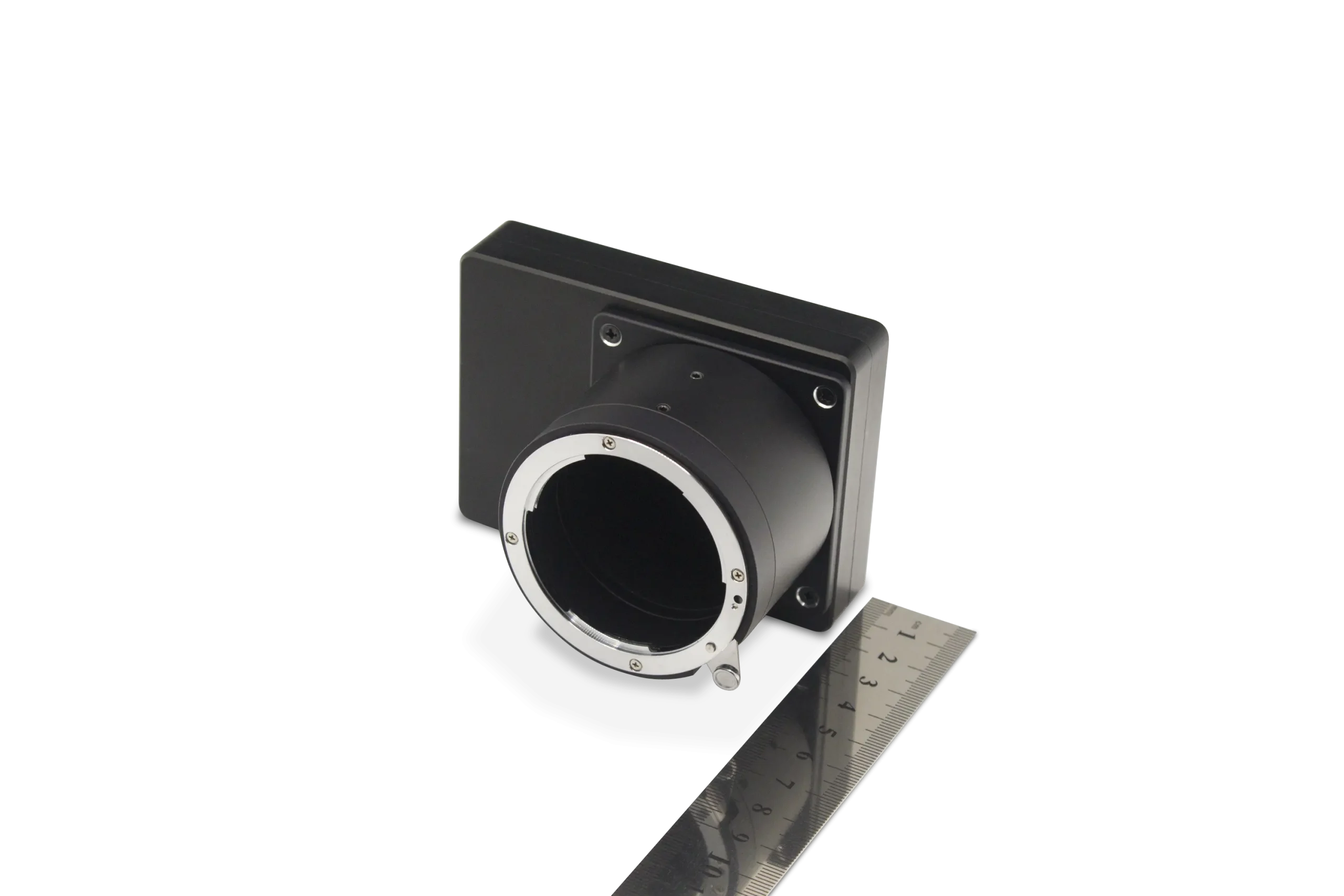

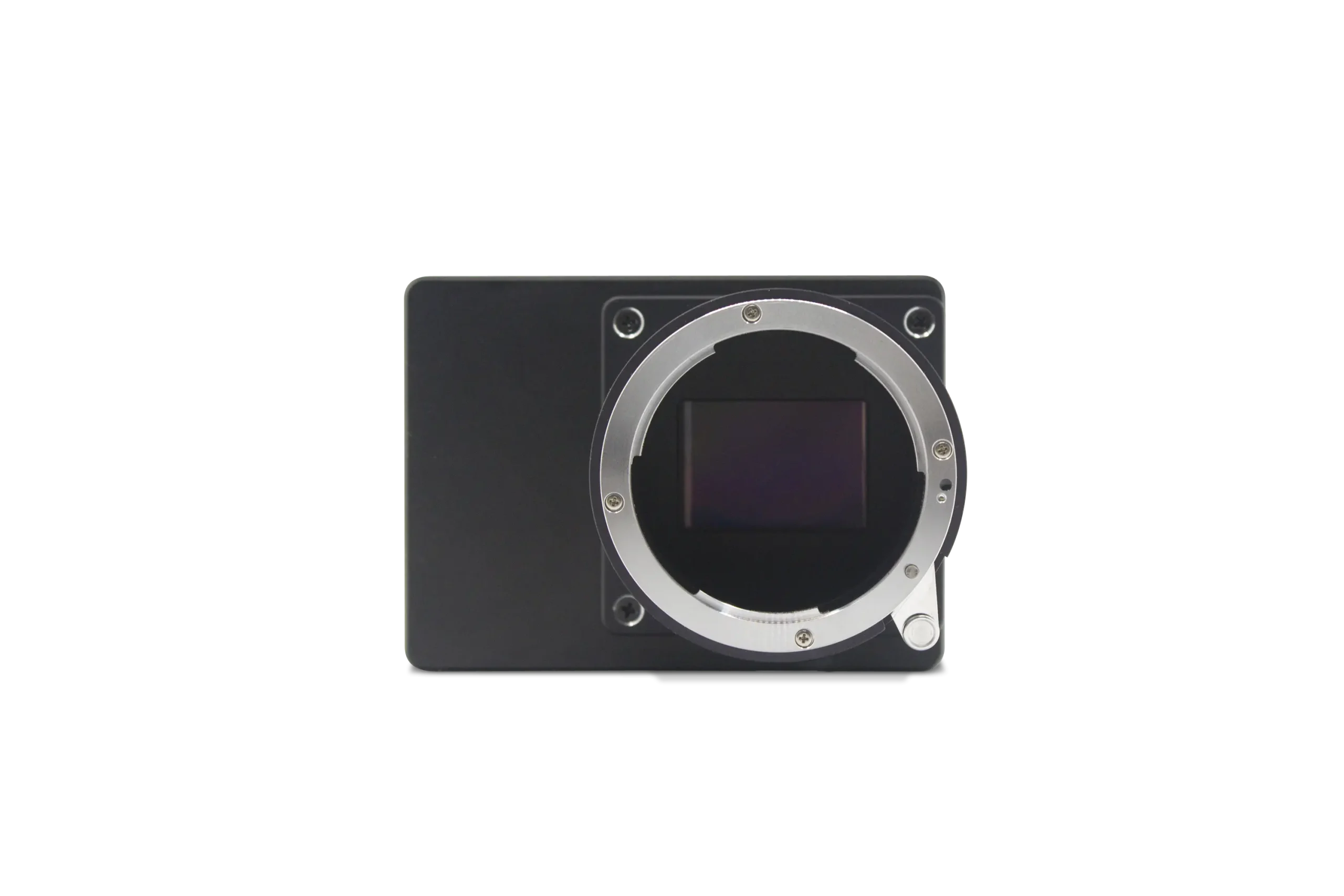

Zinc 661 PCIe
127.7 Megapixel, Global shutter, Small, Rugged, Low Power with Large Feature Set
Features
• 127.7 Megapixel up to 21.5 fps
• Monochrome and Color sensor variation
• Up to 22 W power at full rate
• Full image processing feature set
• PCI Express Gen 3 standard compliant
• Gen<i>Cam compliant
• Up to 8 PCI Express links
• M72 lens mount available
• Commercial and Industrial grade options
• Full EMVA1288 report
• Full built-in self-test (BIT)
• Full built-in voltage testing
• Customization as per user requirements
Applications
• Perimeter vision
• Low light surveillance
• Special Effects
• Virtual Reality
• 3D
Specifications
| General | |
|---|---|
| Pixel Size | 3.45 μm x 3.45 μm |
| Resolution | 13400 (H) x 9528 (V) |
| Sensor Size | 56.7 mm diagonal |
| Sensor Format | 3.6” |
| Sensor | Sony IMX661 |
| Sensor Type | CMOS |
| Output Interface | PCI Express Gen 3 |
| Supported Interface Rates | Gen 1, Gen 2 or Gen 3 |
| Interface Connector | Samtec |
| Number of Links | 8 |
| Output Resolution | 8, 10, 12 or 14 bit |
| Maximum Frame Rate | 21.5 fps @8 bit resolution 21.5 fps @10 bit resolution 19.6 fps @12 bit resolution 12.9 fps @14 bit resolution |
| Tap Geometry | 1X-2YE |
| Image Acquisition | Continuous / Triggered |
| Camera Control | Gen<i>Cam |
| Electronic Shutter | Global |
| Monochrome / Color | Monochrome or Color |
| Temporal Noise | <2.7 e- at 25°C |
| Full Well Charge | 9825 e- |
| Dynamic Range | >70.8 dB at 520 nm |
| Signal-to-Noise Ratio (SNR max) | 40 dB at 520 nm |
| Quantum Efficiency (QE) | >63% at 520 nm |
| Shortest Exposure | 10 μs |
| IR Filter (optional) | UV cut below 400 nm IR cut above 700 nm |
| Exposure Control | Automatic / Manual |
| Gain Control | Automatic / Manual |
| Color Control | RGB offsets Auto / Manual White balance LUT |
| Image Enhancement | Defect pixel correction Gain (Analog / Digital) Auto / Manual black level Binning Auto Exposure / Gain Flat field / Fixed pattern noise correction |
| Additional On-Camera Processing | ROI Image flip Frame counter Operational Time Counter Binning |
| Power Input | External 11 V – 13 V input |
| Power Consumption | <22 W at 12 V DC |
| Configuration Software | Gen<i>Cam Standard software |
| Synchronization | Protocol / External I/O Trigger |
| Exposure Strobe Output | Yes |
| I/O | |
| I/O Lines | 1 opto-isolated input 1 opto-isolated output 1 single-ended TTL output 1 single-ended TTL/LVTTL input |
| Usage | Any System I/O input lines can be connected to any I/O output line Any I/O input line can generate any trigger event Any I/O input line can trigger a timer Any I/O input line can trigger a counter |
| Electrical Specifications | TTL lines: 5 V TTL compliant LVTTL lines: 3.3 V LVTTL compliant Isolated lines: opto-isolated lines with voltage range up to 30 V |
| Absolute Maximum | TTL/LVTTL input voltage: -0.3 V to +6 V TTL output current: 40 mA Isolated input voltage: -4 V to +25 V Isolated output voltage: -0.3 V to +25 V Isolated input current: 30 mA Isolated output current: 50 mA |
| Operating | TTL/LVTTL input voltage: 0 V to +5 V TTL output current: 0 mA to 24 mA Isolated input voltage: 0 V to +24 V Isolated output voltage: 0 V to +24 V Isolated input current: 6.3 mA to 15 mA Isolated output current: 1 mA to 25 mA |
| Timers | 4 general purpose timers Configurable delay and duration 32-bit accumulator |
| Counters | 4 general purpose counters Configurable value and duration 32-bit counter |
| Mechanical | |
| Dimensions (including lens mount) | 83 mm x 78 mm x 49 mm (3.3” x 3.1” x 1.9”) |
| Weight (without lens) | 500 g (17.6 oz) |
| Lens Mount | M72 |
| Sensor Alignment | Active |
| Ingress Protection | Optional IP67 (with protective lens tube) |
| Environmental Conditions | |
| Operating Ambient Air Temperature | Commercial: 0°C to +50°C (32°F to +122°F) Industrial: -40.0°C to +70°C (-40°F to +158°F) At 1 m/s airflow |
| Operating Ambient Air Humidity | 10% to 90% RH non-condensing |
| Storage Ambient Air Temperature | Commercial: 0°C to +55°C (32°F to +131°F) Industrial: -40.0°C to +75°C (-40°F to +167°F) |
| Storage Ambient Air Humidity | 10% to 90% RH non-condensing |
| Operational Shock | MIL-STD-810G Method 516.6, 3-axis Shock 75G |
| Operational Vibration | MIL-STD-810G Method 514.6, 3-axis Vibration Category 20 |
| MTBF | 1,600,000 hrs @ 50°C (Without fan, Telecordia) |
| Certifications | |
| Electromagnetic – EMC Standards | European EMC Directive 2014/30/EU United States FCC rule 47 CFR 15 |
| EMC – Emission | EN 55032:2015 Class B FCC 47 Part 15 Class B |
| EMC – Immunity | EN 55035:2017 Class B EN 61000-4-3 EN 61000-4-4 EN 61000-4-6 |
| Flammability | PCB compliant with UL 94 V-0 |
| RoHS | Compliant with EU Directive 2011/65/EU (RoHS2) |
| REACH | Compliant with EU Regulation No 1907/2006 |
| WEEE | Must be disposed of separately from normal household waste and recycled according to local regulations |
Camera Workflow
*KAYA’s Vision Point software and SDK are highly recommended. For more information please click here.
QE Tables

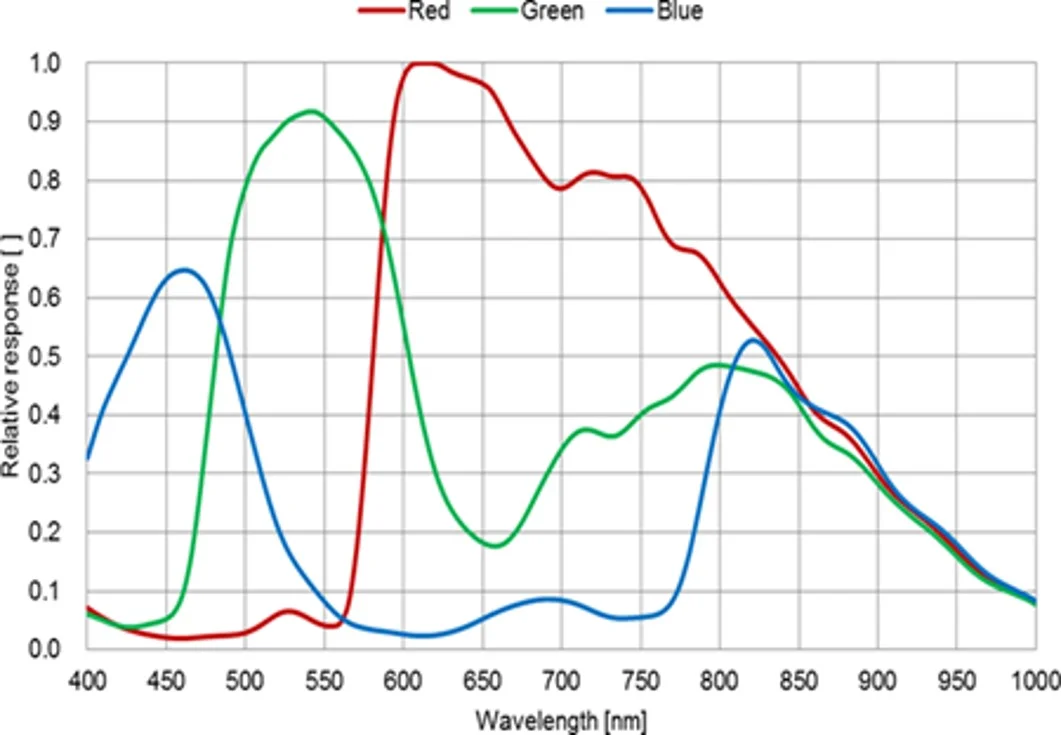

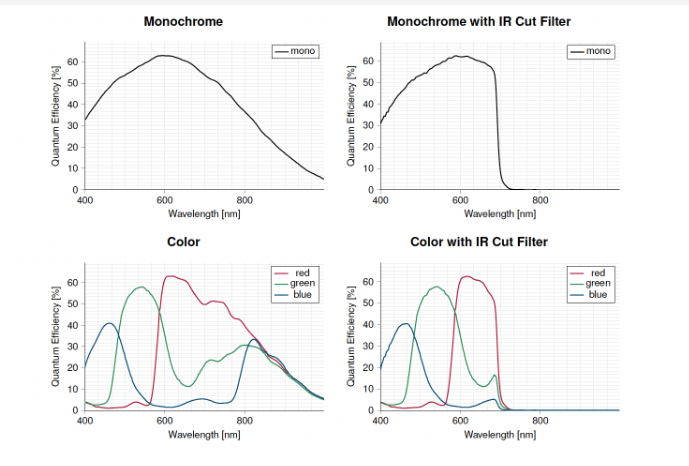

IMX661 Spectral Responses
FPS Calculator
IMX661 FPS Calculator |
Downloads
Related

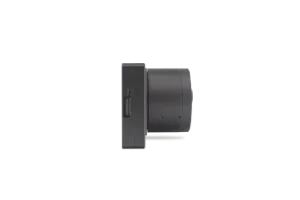

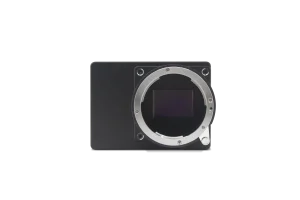

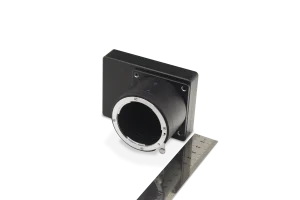

Zinc 3265 PCIe
Zinc3265 PCIe is an ultra-thin high speed, low-cost, low-power Global shutter CMOS camera with a Gen3 PCIe interface supporting up to 4 lanes.
Read More

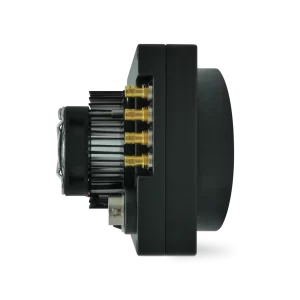

Iron 661
