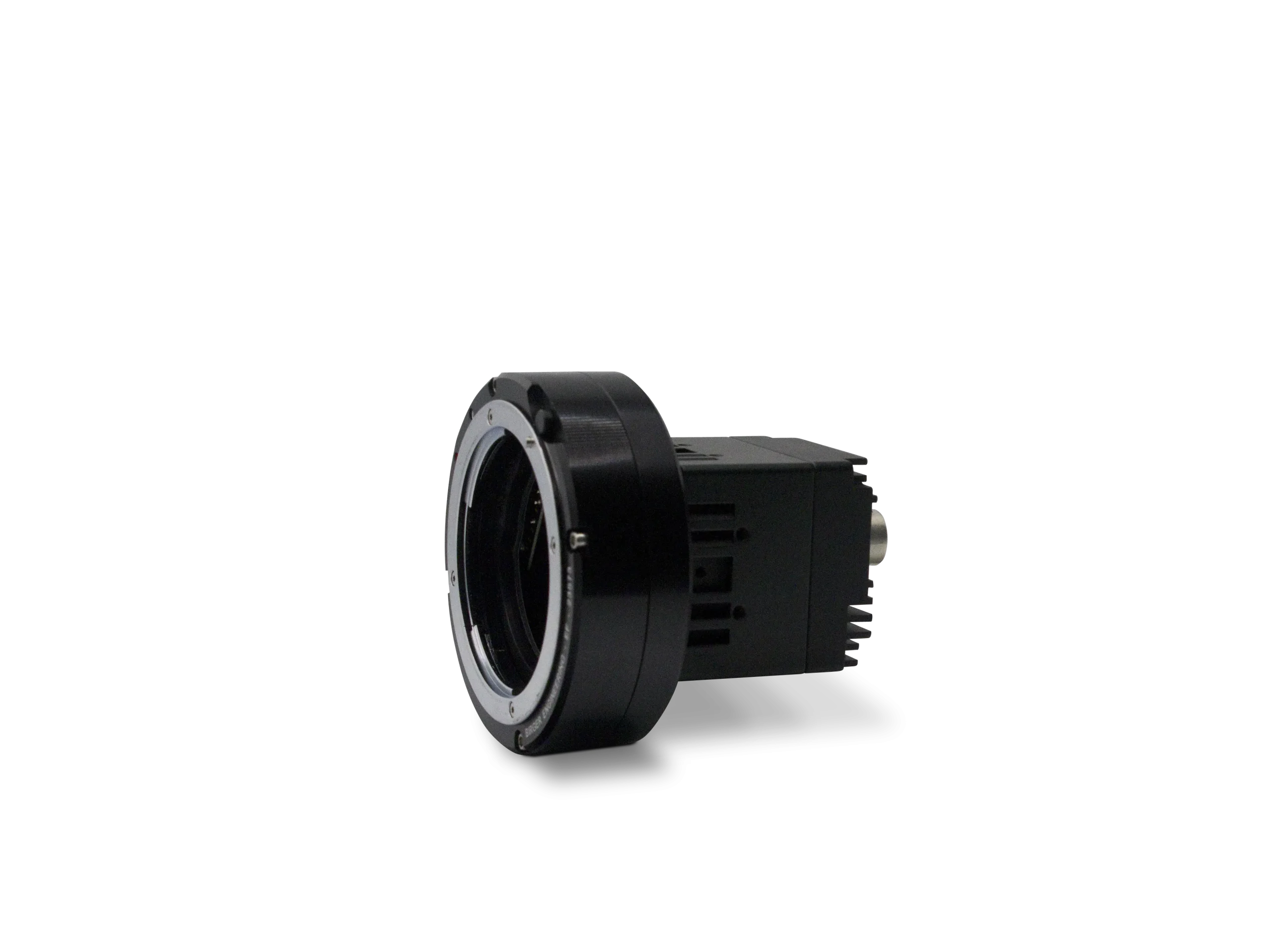

Iron CoF 2011E

2 MP at 513 fps Global Shutter sensor. Small Form Factor CoaXPress Over Fiber 12G ruggedized camera

Features

Innovative Approach – The Iron 2011E is a high-speed, low-cost, low-power global shutter CMOS camera with a CoaXPress over Fiber Bridge 1.0 interface (via a SFP+ module) which supports 2 MP high quality video at rates of up to 513fps.

Intelligent Design – The Iron 2011e is a global shutter camera with a 6.5µm pixel size. With a compact outline the camera can be fitted into tight spaces. Superior sensor performance allows very low light vision capabilities.

2 Megapixel up to 513.6 fps
Up to 4.5W power at full rate
Full image processing feature set
Up to 12.5 Gbps CoaXPress interface
C or CS lens mounts available
Full EMVA1288 report
Full built-in self-test (BIT)
Full built-in voltage testing
Customization as per user requirements
Wide temperature range
Vibration resistant

Applications

Perimeter vision
Low light surveillance
Special Effects
Virtual Reality
3D

Specifications

Pixel Size	6.5 µm x 6.5 µm
Resolution	2048 (H) x 1152 (V)
Sensor Size	13.3 mm x 7.5 mm \| 1”
Sensor	Gpixel GSENSE2011e
Output Interface	CoaXPress over Fiber Bridge 1.0
Interface connector	Fiber optic SFP+ module
Supported SFP+ Modules	Single-mode 1310nm
	Multi-mode 850nm
	Bidirectional single-mode (single fiber)
	CWDM
Output Resolution	10 bit, 8 bit
Max Frame Rate	513.6 fps @ 8 bit
	405.8 fps @ 10 bit
Image acquisition	Continuous / Triggered
Camera Control	Gen<i>Cam
Electronic shutter	Global shutter
Monochrome/ color	Monochrome
Temporal noise	<6.2 e-
Full well charge	19 ke-
Dynamic range	> 70dB
Signal-to-Noise Ratio (SNR max)	41.5dB

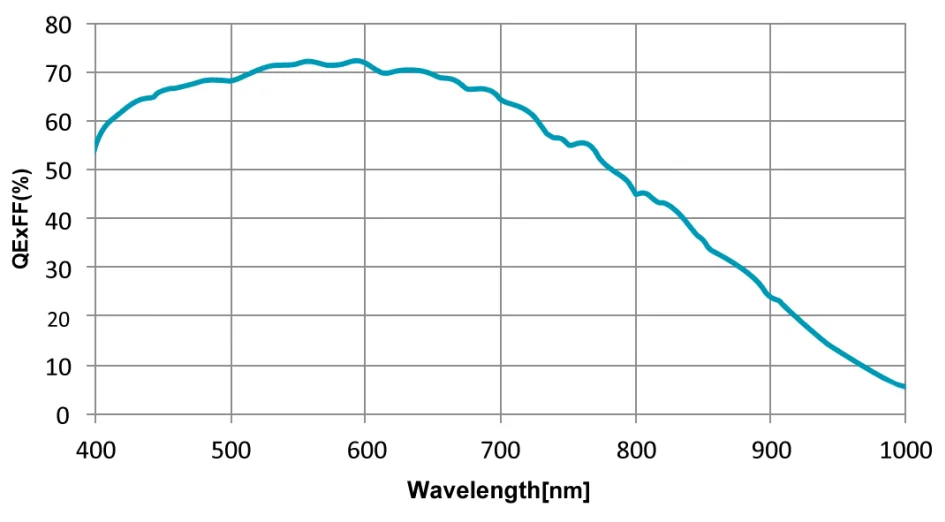

Quantum efficiency (QE) X FF	<72% @595nm
Shortest Exposure	2.6 µs
On camera processing	Defect pixel correction
	ROI
	Frame counter
	Flat field / Fixed patter noise correction
	Auto/Manual black level
	Auto Exposure/Gain
	Auto/Manual White balance
	Image flip
	LUT
	Gain (Analog / Digital)
	Binning
	Operational Time Counter
GPIO Connection	Two inputs, two outputs, external trigger & strobe controller

Dimensions ^[¹^]	46 mm x 48 mm x 90.4 mm (Height x Width x Depth)
Weight (without lens)	<100g
Typical current	<190mA @ 24V
Operating Temperature	-40°C to 80°C, 20-85% humidity (non-condensing)
Storage Temperature	-40°C to 85°C, 20-85% humidity (non-condensing)
Operational Shock	Tested per MIL-STD-810G Method 516.6, 3-axis Shock 75G
Operational Vibration	Tested per MIL-STD-810G Method 514.6, 3-axis Vibration Category 20
Ingress Protection	Optional IP67 (with protective lens tube)
Lens Mount	C-mount / CS-mount
Power Input	PoCXP full support (11-28V with external power option)
Power Consumption	<4.5W @ 24V DC
