Iron 411

Features

KAYA Vision’s Iron 411 IMX411 camera sets a new standard in imaging with 14192(H) x 10640(V) resolution, 3.76µm x 3.76µm pixel size, >81.8 dB dynamic range, and 50,000 e- full well charge. It boasts a rolling shutter, variable shutter speeds (down to 10 µs), and electronic shutter controls for precise image capture. Video output features include up to 4 channels CoaXPress v2.1 (CXP-12), enabling high-throughput data transfer. Additional capabilities include continuous or triggered image acquisition, on-camera processing (LUT, defect pixel correction, color control), and GenICam-compliant control, making it ideal for professional photography, industrial inspection, and scientific research.

Innovative Approach – The Iron411 is a low-cost, low-power, ultra-high-resolution rolling CMOS camera with a CoaXPress v2.1 interface (Micro-BNC connector) which supports 151 MP high quality video, with 14192 (H) x 10640 (V) resolution, at rates of up to 6.2 fps.

Intelligent Design – Iron41 incorporates an IMX411 rolling shutter sensor with 3.76µm pixel size. With a compact outline the camera can be fitted into tight spaces. Superior sensor performance enables very low light vision capabilities.

151.0 Megapixel up to 6.2 fps
Monochrome and Color sensor variation
Up to 14 W power at full rate
Full image processing feature set
CoaXPress v2.1 standard compliant
Gen<i>Cam compliant
Up to 4 CoaXPress links
M72 lens mount available
Commercial and Industrial grade options
Full EMVA1288 report
Full built-in self-test (BIT)
Full built-in voltage testing
Customization as per user requirements

Applications

LCD/LED/OLED Flat Panel Inspection
Perimeter vision
Surveillance
Special Effects
Virtual Reality
Traffic
Photogrammetry

Specifications

General
Pixel Size	3.76 μm x 3.76 μm
Resolution	14192 (H) x 10640 (V)
Sensor Size	66.7 mm diagonal
Sensor Format	3.6”
Sensor	Sony IMX411
Sensor Type	CMOS
Output Interface	CoaXPress v2.1
Supported Interface rates	CXP-12, CXP-6 or CXP-3
Interface Connector	Micro-BNC
Number of Connectors	4
Output Resolution	12, 14 or 16 bit
Maximum Frame Rate	• 6.2 fps @12 bit resolution • 4.5 fps @14 bit resolution • 2 fps @16 bit resolution
Tap Geometry	1X-2YE
Image Acquisition	Continuous / Triggered
Camera Control	Gen<i>Cam
Electronic Shutter	Rolling
Monochrome / Color	Monochrome or Color
Temporal Noise	<3.2 e- at 25°C
Full Well Charge	50000 e-
Dynamic Range	>81.8 dB at 520 nm
Signal-to-Noise Ratio (SNR max)	46.6 dB at 520 nm

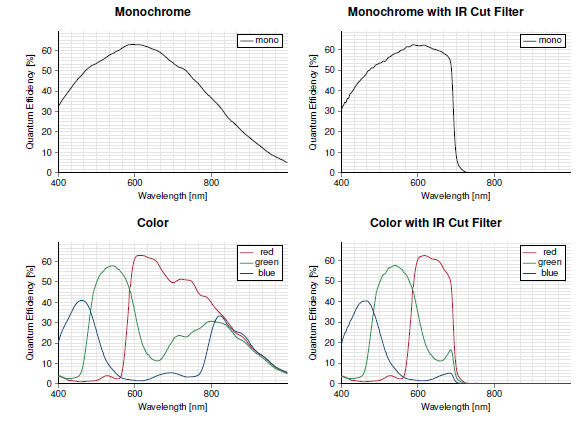

Quantum Efficiency (QE)	>75% at 520 nm
Shortest Exposure	10 μs
IR Filter (optional)	• UV cut below 400 nm • IR cut above 700 nm
Exposure control	Automatic/Manual
Gain control	Automatic/Manual
Color Control	• RGB offsets • Auto / Manual White balance • LUT
Image enhancement	• Defect pixel correction • Gain (Analog / Digital) • Auto / Manual black level • Binning • Auto Exposure / Gain • Flat field / Fixed pattern noise correction
Additional on camera processing	• ROI • Image flip • Frame counter • Operational Time Counter • Binning
Power Input	• PoCXP • External 11 V – 28 V input
Power Consumption	<14 W at 24 V DC
Configuration software	Gen<i>Cam Standard software
Synchronization Protocol/External I/O	Trigger
Exposure Strobe output	Yes
Outputs
I/O lines	• 1 opto-isolated input • 1 opto-isolated output • 1 singled-ended TTL output • 1 singled-ended TTL/LVTTL input
Usage	• Any System I/O input lines can be connected to any I/O output line • Any I/O input line can generate any trigger event • Any I/O input line can trigger a timer • Any I/O input line can trigger a counter
Electrical specifications	• TTL lines: 5 V TTL compliant • LVTTL lines: 3.3 V LVTTL compliant • Isolated lines: opto-isolated lines with voltage range up to 30 V
Absolute Maximum	• TTL/LVTTL input voltage: -0.3 V to +6 V • TTL output current: 40 mA • Isolated input voltage: -4 V to +25 V • Isolated output voltage: -0.3 V to +25 V • Isolated input current: 30 mA • Isolated output current: 50 mA
Operating	• TTL/LVTTL input voltage: 0 V to +5 V • TTL output current: 0mA to 24 mA • Isolated input voltage: 0 V to +24 V • Isolated output voltage: 0 V to +24 V • Isolated input current: 6.3 mA to 15 mA • Isolated output current: 1 mA to 25 mA
Timers	• 4 general purpose timers • Configurable delay and duration • 32-bit accumulator
Counters	• 4 general purpose counters • Configurable value and duration • 32-bit counter
Mechanical
Dimensions (including lens mount)	83 mm x 78 mm x 49 mm (3.3” x 3.1” x 1.9”)
Weight (without lens)	500 g (17.6 oz)
Lens Mount	M72
Sensor Alignment	Active
Ingress Protection	Optional IP67 (with protective lens tube)
Environmental Conditions
Operating ambient air temperature	Commercial : 0°C to +50°C (32°F to +122°F) Industrial : -40.0°C to +70°C (-40°F to +158°F) At 1 m/s airflow
Operating ambient air humidity	10% to 90% RH non-condensing
Storage ambient air temperature	Commercial : 0°C to +55°C (32°F to +131°F) Industrial : -40.0°C to +75°C (-40°F to +167°F)
Storage ambient air humidity	10% to 90% RH non-condensing
Operational Shock	Tested per MIL-STD-810G Method 516.6, 3-axis Shock 75G
Operational Vibration	Tested per MIL-STD-810G Method 514.6, 3-axis Vibration Category 20
MTBF	1,600,000 (Without fan) hrs @ 50C (Telecordia)
Certifications
Electromagnetic – EMC standards	• The European EMC Directive 2014/30/EU • The Unites States FCC rule 47 CFR 15
EMC – Emission	• EN 55032:2015 Class B • FCC 47 Part 15 Class B
EMC – Immunity	• EN 55035:2017 Class B • EN 61000-4-3 • EN 61000-4-4 • EN 61000-4-6
Flammability	PCB compliant with UL 94 V-0
RoHS	Compliant with the European Union Directive 2011/65/EU (RoHS2)
REACH	Compliant with the European Union Regulation No 1907/2006
WEEE	Must be disposed of separately from normal household waste and must be recycled according to local regulations
