Product’s Sensor has EOL date of 3/31/2026. All orders must be placed before 3/16/2026

Iron SDI 462

1080p at 60fps Rolling Shutter sensor. Small Form Factor SDI Ruggedized Camera

Features

Innovative Approach – The Iron SDI 462 is an ultra-thin, low-cost, low-power rolling shutter CMOS camera with an SDI interface that supports high-quality video at rates up to 60 fps. With an optional analog video output, this camera is highly versatile, allowing it to fit various tasks and conditions.

Intelligent Design – Our camera incorporates high sensitivity Sony rolling shutter sensor with a 2.9µm pixel size. With an extremely compact outline the Iron can be fitted into tight spaces. Superior sensor performance allows very low light vision capabilities.

Up to 1080p Resolution up to 60 fps
Up to 2.2W power at full rate
Full image processing feature set
Up to 3G-SDI interface
C, CS or M12 lens mount
Rugged industrial grade
Full built-in self-test (BIT)
Full built-in voltage testing
Customization as per user requirements
Board level and packaged camera options
HD BNC connector for SDI output
Optional: analog video output

Applications

Perimeter vision
Low light surveillance
Special Effects
Virtual Reality
3D

Specifications

Specifications

Pixel size	2.9 µm x 2.9 µm
Optical format	1/2.8
Sensor	Sony IMX 462 Rolling shutter sensor
Video output	2k, 1080p, 1080i up to 60 fps
Output interface	Single-Link HD-SDI or 3G-SDI
	Optional: Analog Video Output
Interface connector	HD BNC (Optional MCX)
Output format	10-bit 4:2:2(Y’Cb’Cr’)
Electronic shutter	Rolling shutter
Monochrome / Color	Color
Temporal noise	2.8e- at Gain 1
Full well charge	10500e- at Gain 1

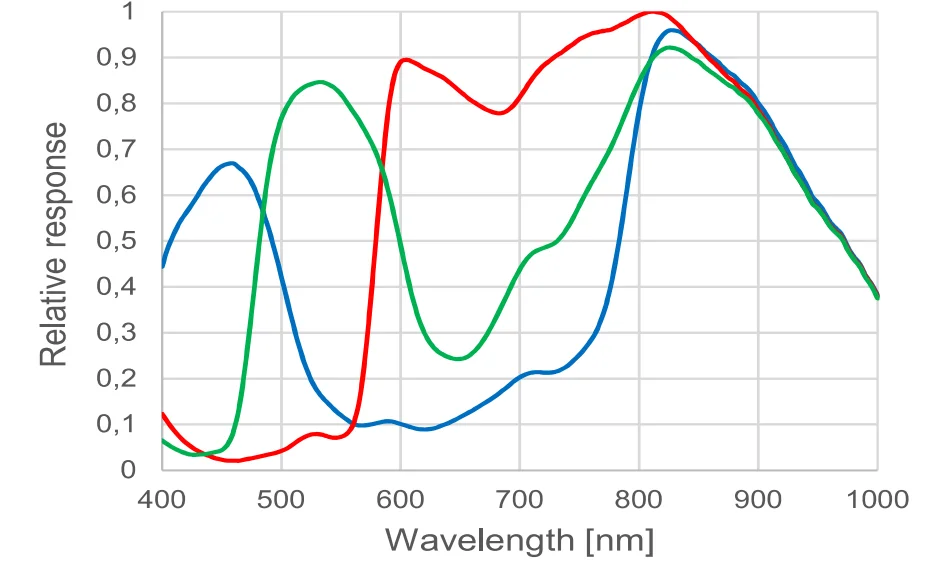

Quantum efficiency	80% @520nm
Dynamic range	> 70.4dB
Signal-to-noise ratio (SNR max)	> 40.2 dB
Shortest exposure	14 µs
Exposure control	Automatic Exposure/Gain, manual Exposure/Gain
Image enhancement	Defect pixel correction
	Operational Time Counter
	Auto/Manual black level
	Auto/Manual White balance
	Image flip
	LUT
	Defog
	RGB offsets, saturation control
	Color correction matrix
Camera configuration	RS232 direct ASCII protocol
Synchronization	Tri-level sync input (supported only for progressive formats)

Mechanical & Electrical

Dimensions (including lens mount)	44 mm x 44 mm x 29.15 mm (Height x Width x Depth)
Lens mount	C-mount, CS-mount or M12-mount
Weight	~55g enclosed, 14g board level
Power input	5-28V
Power consumption	2.4W Typical (@ 12V DC, 25°C)
	3.4W Maximum (@ 28V DC, 80°C)
Operating temperature	-40°C to 80°C, 20-85% humidity (non-condensing)
Storage temperature	-40°C to 85°C, 20-85% humidity (non-condensing)
Operational Shock	Tested per MIL-STD-810G Method 516.6, 3-axis Shock 75G
Operational Vibration	Tested per MIL-STD-810G Method 514.6, 3-axis Vibration Category 20
Ingress protection	Optional IP67 (with protective lens tube)

* For accurate and up-to-date information, please refer to the datasheet. KAYA Vision reserves the right to update datasheets from time to time without prior notice..

SDI Supported Video Modes

Mode	Video Standard	Supported Resolution	Supported FPS
HD-SDI	ST 292 (ST 274)	1080i 10-bit 4:2:2/RAW	50,60, 59, 94
		1080p 10-bit 4:2:2/RAW	23.98, 24, 25, 29.97, 30
3G-SDI	ST 425-1 (ST 274)	1080p 10-bit 4:2:2/RAW	50, 59.94, 60
