Full IP67 Sealing
Dust-tight construction with O-ring sealed body and lens tube for protection against temporary water immersion.

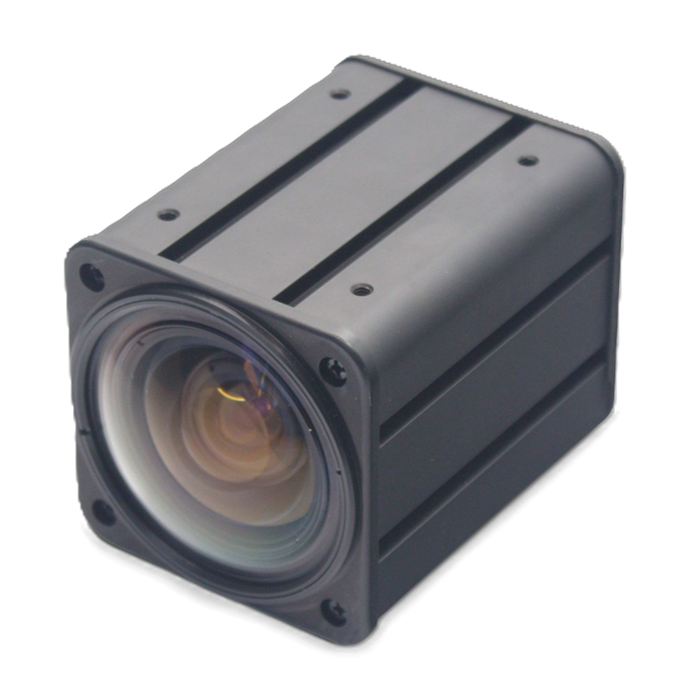

KAYA Vision Custom IP67 Enclosures
IP67 Camera Enclosures for KAYA Vision cameras
KAYA Vision designs and manufactures fully custom IP67 enclosures for industrial, aerospace, broadcast and outdoor machine vision systems. Pick the camera, the lens, the lens tube, and the environmental options — we build the housing around them.
Machined Aluminium
Anodised aluminium body acts as a heat sink, helping the enclosed camera maintain stable operating temperature.
Robust Build
Engineered to withstand high-vibration and high-impact industrial settings while maintaining precise optical alignment
Modular & Serviceable
Discrete lens tube, body, and rear cap modules let teams change optics or service connectors in the field.
How The Enclosure Is Built
Three modules, configured to your project
Each KAYA IP67 enclosure is composed of a sealed body, a lens tube and a rear interface. Every module has selectable options so the final housing matches the camera, optics, mounting and environment of your application.
Sealed Body
Machined aluminium chassis sized around the chosen KAYA camera, with O-ring sealing and anodised finish.
- Sized for Iron cameras
- Type 2 anodising or custom finish
- Mounting pattern and brackets to match the platform
- Optional internal heater and thermal interface
Lens Tube
Sealed lens tube selected by lens length and diameter.
- Length matched to the lens (e.g. 4.7mm fixed focal in the featured build)
- Optional window heater for fogging or frost control
- Replaceable front ring for easy maintenance
Interface & Connectivity
Versatile rear cap assembly configured for high-bandwidth data transmission and secure power delivery.
- Compatible with SDI, CXP, and PCIe interface standards
- High-speed pass-through for copper or fiber-optic links
- Integrated power, trigger, and control I/O
- Maintains full IP67 integrity at the cable entry point
Featured Configuration

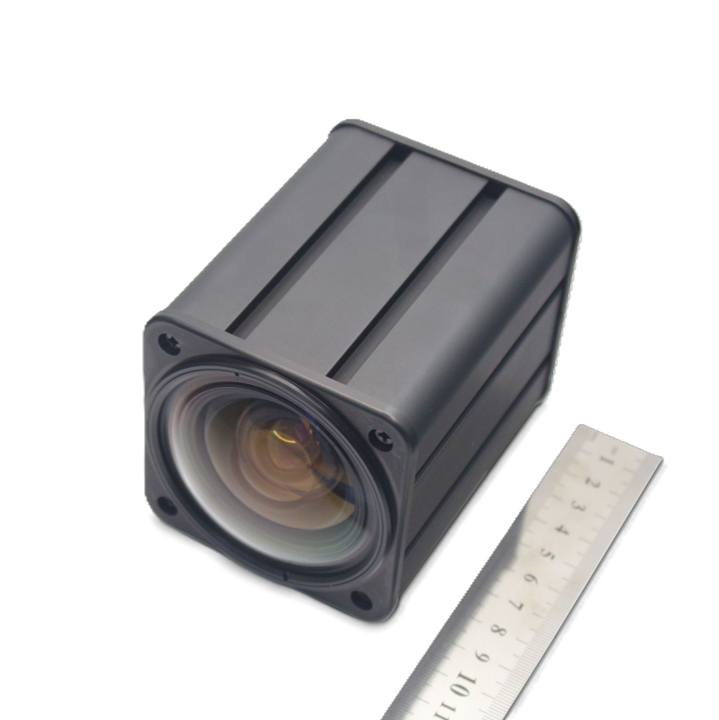

IRON305 SDI
A real example of how the platform comes together: a KAYA Iron SDI 305C camera with a 4.7mm lens, integrated into a compact IP67 enclosure. This build is sealed but not nitrogen-purged, and has no heater installed.
A compact, sealed 4K camera unit
- Camera Iron SDI 305C (4K up to 60 fps)
- Lens 4.7mm fixed focal, installed
- Interface Up to 12G-SDI
- Sealing IP67, O-ring sealed body and lens tube
- Internal atmosphere Standard (Sealed Air)
- Qualification MIL-STD-810G Shock & Vibration
IP67 Camera Enclosure FAQ
Selection & configuration notes
What types of lenses can be installed in the IP67 enclosure?
The enclosure can be built around almost any C-mount, CS-mount, EF-mount, or M42-mount lens that fits the selected KAYA camera. The lens tube length is machined to match the specific optics, whether it's a compact 4.7mm fixed focal lens or a longer telephoto or motorised zoom lens.
Standard sealed air vs nitrogen purge — which one should I pick?
A standard sealed-air IP67 enclosure (like the featured build) is ideal when the application stays inside the camera's non-condensing operating range and does not see severe pressure or temperature cycling. Dry nitrogen purge is added when humidity, rapid dew-point crossing, or condensation on the window or lens would degrade imaging — common in outdoor surveillance, marine and high-altitude applications. Both options are available from KAYA.
When does an IP67 camera enclosure need a heater?
A heater is added when the system has to start up below freezing, when window fogging or frost would occur, or when the lens would otherwise exit its specified range. The featured IRON305C-SDI-RC-ENC4.7mm build does not require a heater.
How do the cables exit the sealed enclosure?
Cable exits are configured based on the camera interface. For cameras, a sealed Micro-BNC pass-through is typically used alongside a sealed power/control cable gland. The rear interface ensures the IP67 rating is maintained at all connection points.
Custom IP67 Enclosure Builds
Tell us the camera, the lens and the environment — we build the housing.
KAYA Vision matches the camera, lens, lens tube, thermal design and qualification level to your platform. The IRON305C-SDI-RC-ENC4.7mm shown above is one example of what that produces.
